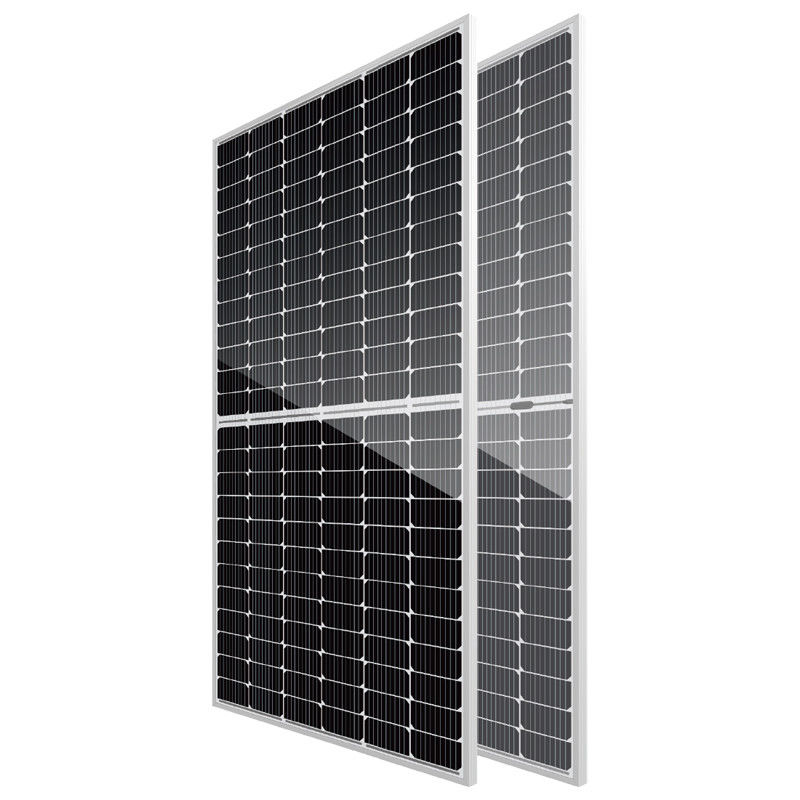

Pannello solare monocristallino Bifacial solare Bifacial dei moduli 535W-560W di Pv del classico 10BB

Pannello solare monocristallino Bifacial solare Bifacial dei moduli 535W-560W di Pv del classico 10BB

Pannello solare monocristallino Bifacial solare Bifacial dei moduli 535W-560W di Pv del classico 10BB

Luogo di origine	Jiangsu, Cina
Marca	AKS
Certificazione	CGC，ISO9001:2015，TUV SUD，PV，CNAS，
Numero di modello	AH7G

Dettagli del prodotto

Nome di prodotto:

MWT Panles solare nero pieno

Numero di modello:

AH7G

Dimensione delle cellule:

144 (24x6)/10BB mono/Mezzo cellula

Efficienza del pannello:

21,7%

Dimensione del modulo dell'installazione:

2277mm*1133mm*35mm

Marca:

Sunport

Tipo:

PERC, mezza cellula

Evidenziare:

Moduli solari Bifacial di Pv del classico 10BB

,

Moduli solari Bifacial 535W di Pv

,

pannello solare monocristallino Bifacial 560W

Termini di trasporto & di pagamento

Quantità di ordine minimo

30pcs

Prezzo

$0.18~$

Imballaggi particolari

Pallet

Tempi di consegna

Per essere negoziato

Termini di pagamento

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Capacità di alimentazione

200000 watt/watt alla settimana

Descrizione del prodotto

Sunport Power SSD AH7G / 10BB 535W-560W Monocrystalline High-Efficiency Bifacial Solar Module Classic Solar Panel

The introduction of Sunport Solar Panels has dramatically changed the solar energy industry with their advanced and highly efficient solar panels. These innovative panels capture the power of sunlight and transform it into clean, renewable electricity that can be used for various applications. Sunport's focus on delivering eco-friendly and cost-effective solutions has established them as a leader in the solar energy field. Their pioneering solar panel technology combines high efficiency with an attractive design, making it a popular choice for both residential and commercial installations.

★ ISO 9001:2015 Quality Management System

★ ISO 14001:2015 Environment Management System

★ ISO 45001: 2018 Occupation Health Safety Management System

★ TUV NORD Certification

Electrical Characteristics at Standard Test Conditions(STC)
Spec/Model	Unit	SSD535 AH7G	SSD540 AH7G	SSD545 AH7G	SSD550 AH7G	SSD555 AH7G	SSD560 AH7G
Max-Power(Pm)	W	535	540	545	550	555	560
Power Tolerance	W	0~±5
Max-Power Voltage(Vm)	V	41.5	41.66	41.80	41.95	42.10	42.25
Max-Power Current(lm)	A	12.90	12.97	13.04	13.12	13.20	13.27
Open-Circuit Voltage(Voc)	V	49.50	49.63	49.75	49.90	50.05	50.20
Short-Circuit Current(lsc)	A	13.63	13.67	13.74	13.77	13.82	13.86
Module Efficiency(qm)	%	20.7	20.9	21.1	21.3	21.5	21.7

Pannello solare monocristallino Bifacial solare Bifacial dei moduli 535W-560W di Pv del classico 10BB 0

Pannello solare monocristallino Bifacial solare Bifacial dei moduli 535W-560W di Pv del classico 10BB 1

TECHNOLOGY COMPARISON

Compared with conventional module, MWT modules reduce 3% shaded area with no busbars. MWT module technology replaces string ribbon by conductive back sheet, abandoning strain, micro-crack and results power degradation, greatly improving stability and reliability.

— Structural Feature —

Pannello solare monocristallino Bifacial solare Bifacial dei moduli 535W-560W di Pv del classico 10BB 2

MWT
Positive and negative electrodes are both on the rear side of solar cell

Pannello solare monocristallino Bifacial solare Bifacial dei moduli 535W-560W di Pv del classico 10BB 3

Conventional
Positive and negative electrodes are located on opposite sides of the cell

— Cell Structure —

Pannello solare monocristallino Bifacial solare Bifacial dei moduli 535W-560W di Pv del classico 10BB 4

MWT
Busbar-free design exhibits higher power output by decreasing shading area up to 3 %

Pannello solare monocristallino Bifacial solare Bifacial dei moduli 535W-560W di Pv del classico 10BB 5

Conventional
Conventional design covers more cell surface from the main busbars, therefore the power output is limited

— Module Encapsulation —

Pannello solare monocristallino Bifacial solare Bifacial dei moduli 535W-560W di Pv del classico 10BB 6

Replace conventional soldering with conductive foil and 2D encapsulation structure

Pannello solare monocristallino Bifacial solare Bifacial dei moduli 535W-560W di Pv del classico 10BB 7

Conventional Cells connected by string ribbons

Pannello solare monocristallino Bifacial solare Bifacial dei moduli 535W-560W di Pv del classico 10BB 8

Pannello solare monocristallino Bifacial solare Bifacial dei moduli 535W-560W di Pv del classico 10BB 9

FAQ

Q:Are you a factory or a trading company?
A:We are a professional Solar Panels Manufacturer in China
Q:How can we guarantee the products quality?
A:Always provide the esteemed buyer a pre-production sample before mass production; Always testing every product before despatching the shipments;
Q:What products we can supply you?
A:Solar Panel,Inverter,Mounting System,Battery,Pv Cable,Distributor Box,Pv Connector,Etc

Q:Can the products pricing be cheaper?
A:Of course, you will be offered a a very good discount with large quantities.
Q: Can print our company‘s logo on the pv panels?
A:Yes! And we accept the OEM&ODM orders.
